NewGigabyte B650 AERO G
A workstation foundation for creative projects
Designed around creator connectivity, this AM5 board combines three NVMe slots with VisionLINK USB-C. Connect compatible creative peripherals while keeping room for a large project library inside the PC.
AM5B650DDR5ATX

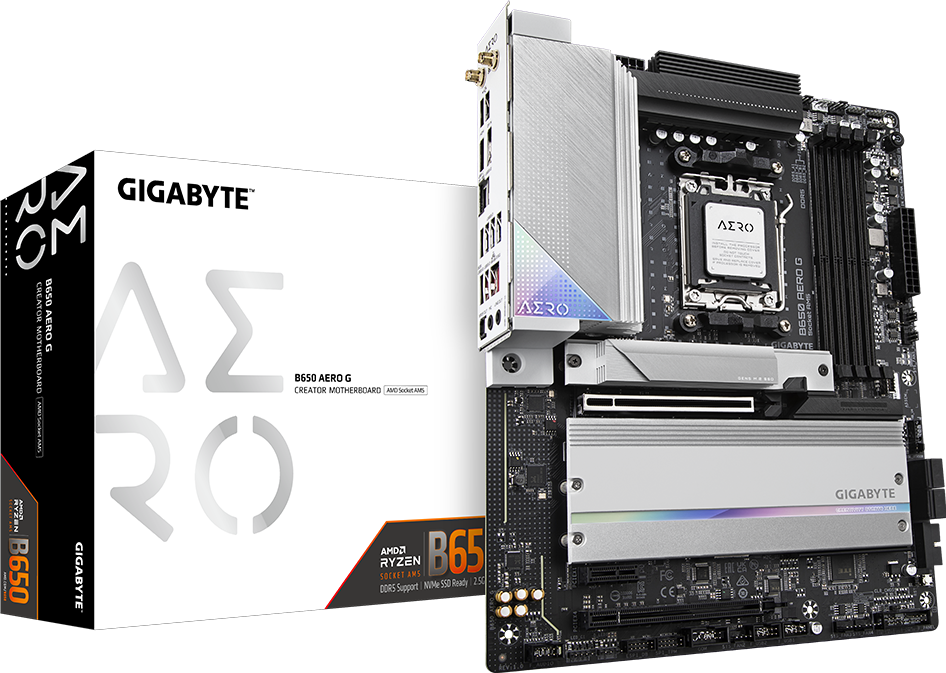

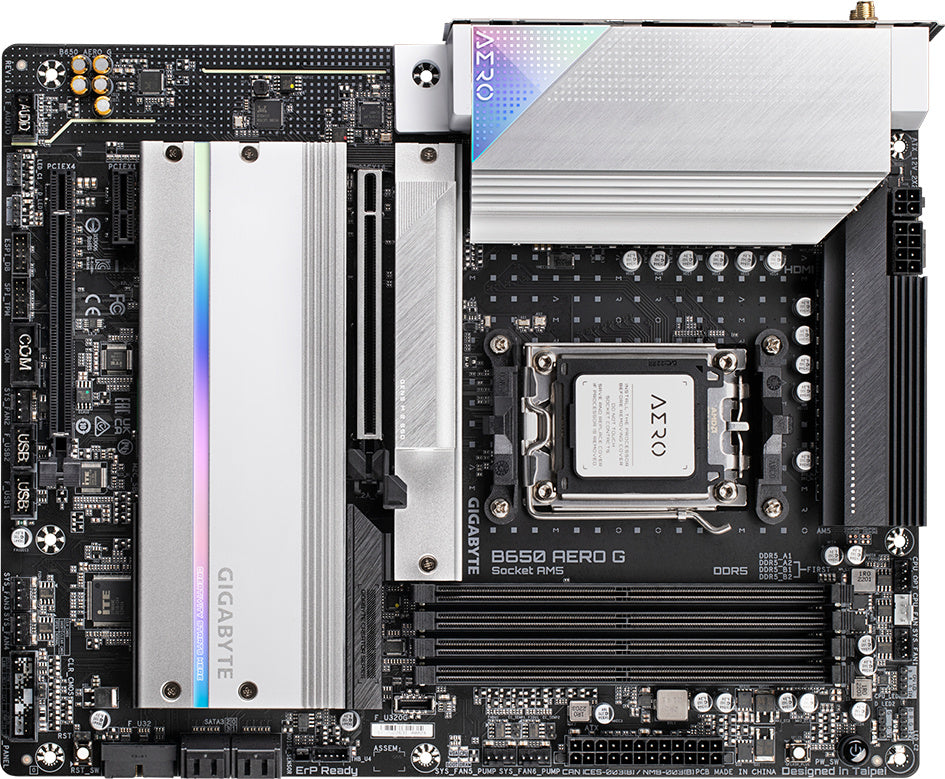

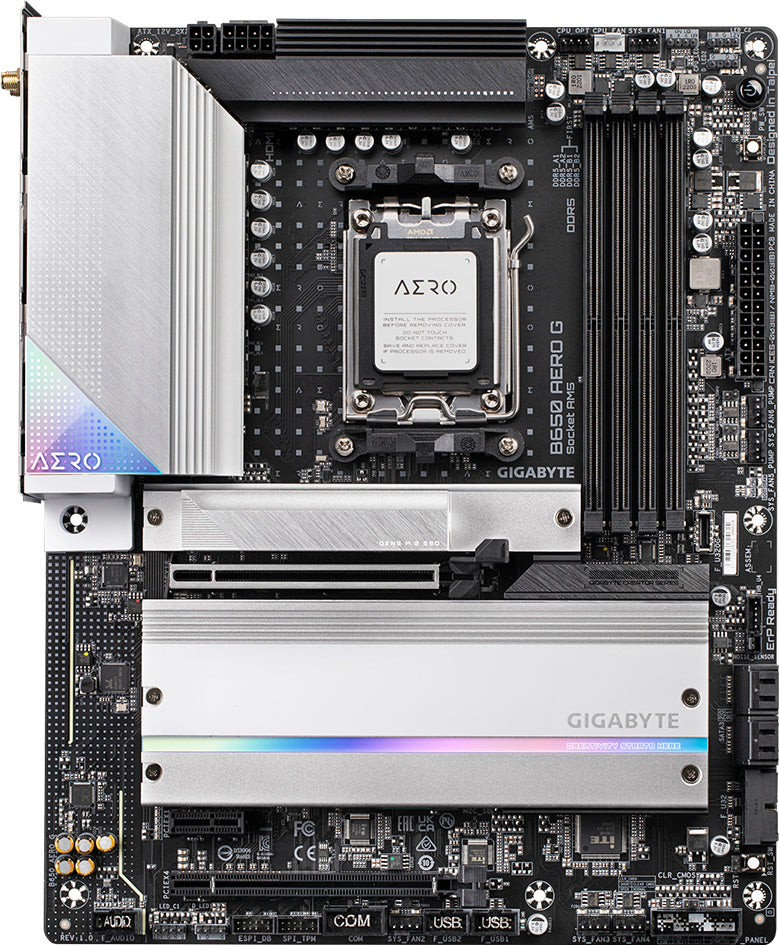

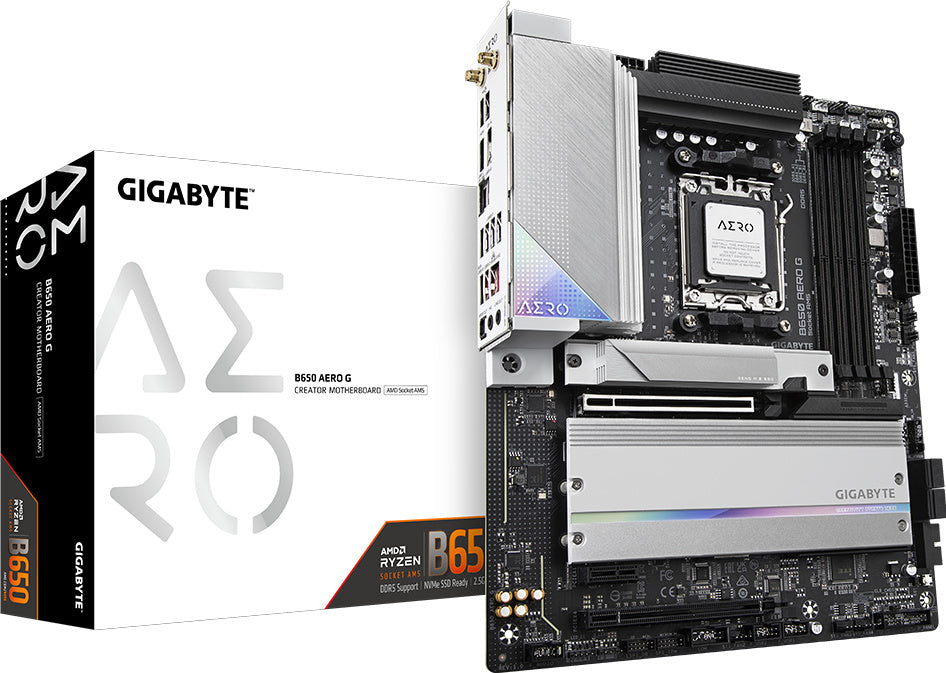

Manufacturer reference image · Board revision and packaging may differ.
01 / STORAGE
3 M.2 positions
4 SATA connectors add options for SSDs and hard drives alongside M.2 storage. Check shared-port restrictions.
02 / CONNECTIONS
Wireless built in
2.5Gb Ethernet + Wi-Fi 6E + Bluetooth. Match the rest of your network to take advantage of the available speed.
03 / BUILD
ATX · DDR5
4 memory sockets and a PCIe 4.0 x16 primary graphics slot. Choose a compatible case, processor and GPU.
CONSTRUCTION THAT MATTERS
Why the design is a good investment
Large VRM heatsinks and M.2 Thermal Guard III help control heat during demanding transfers. PCIe and M.2 quick-release features reduce installation effort.
These features support reliability; lifespan also depends on cooling, installation, power quality and use. They are not a lifetime guarantee.
Know what your board can do
| Platform |
AM5 socket · B650 chipset |
| Processor support |
Compatible AMD Ryzen 7000 / 8000 / 9000 series; BIOS support required |
| Board size |
ATX |
| Memory |
4 × DDR5 DIMM sockets · dual-channel support |
| Primary graphics slot |
PCIe 4.0 x16 (CPU/configuration dependent) |
| M.2 SSD slots |
3: one PCIe 5.0 x4 + two PCIe 4.0 x4 |
| SATA storage |
4 × SATA 6Gbps connectors |
| Networking |
2.5Gb Ethernet + Wi-Fi 6E + Bluetooth |
| Display connectors |
HDMI; DisplayPort input for VisionLINK (compatible CPU required) |
| USB highlights |
VisionLINK USB-C up to 10Gbps with display and up to 60W power delivery |
Interface speeds are theoretical maximums. CPU, BIOS, board revision and installed devices affect available features and performance. SSDs, CPU, memory and graphics card are sold separately.
Condition & what to expect
New. New condition. Manufacturer photographs illustrate the model; packaging details may vary.
This listing is for the motherboard. Confirm any required antenna, I/O shield, cables and mounting hardware with Groovy Computers before ordering. 3-Year Manufacturer's Warranty. Manufacturer terms apply. Ask us about the return terms for this unit.
Plan a compatible build
- Use DDR5 desktop memory only. DDR4 modules do not fit. Verify the manufacturer’s CPU list, minimum BIOS version and memory QVL before assembly.
- PCIe generation, lane width and M.2 availability can depend on the installed CPU and shared connections. Motherboard display outputs require a CPU with integrated graphics. Front-panel ports require matching case connections.
- Ryzen 8000-series processors can reduce graphics lanes and change M.2 speeds or availability compared with Ryzen 7000/9000.
- Wireless performance depends on the router, antenna, drivers and environment. Wi-Fi 6E requires compatible 6GHz equipment and operating-system support.
- VisionLINK display operation may require a DisplayPort input from a graphics card. Compatible devices, cables and auxiliary power are needed for applicable display/charging features.
Manufacturer specifications, CPU support & documentation
